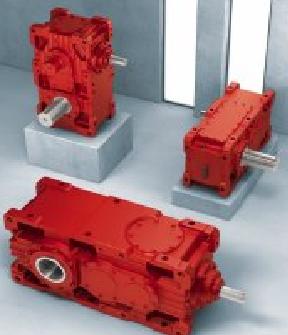

X series

Mã sản phẩm: X series
Nhà Sản Xuất:

Sew-Germany

Your benefits
Extremely robust gear unit housing
Reduced costs and weight due to high power density and finely stepped sizes
Effective cooling systems
CCW and CW versions may be implemented in a single gear unit version
Flexible mounting capability
Efficient project planning tools including 2D and 3D dimension drawing generators
Short delivery times for standard versions and spare parts
Worldwide service

Robust and universal gear unit series which can be optimally adjusted to the task due to finely stepped torque ratings. The universal modular system concept sets new standards with respect to availability and offers a broad range of application options, e.g. for conveyor systems, ball mills and agitators. Application gear units, such as for bucket conveyors, complete the range.


Technical data
Gear unit version
Stages
Gear ratios
Rated torque MN2 [kNm]
Helical gear unit X.F..:
2, 3 and 4-stage
6 to 400
6.8 to 475
Helical-bevel gear unit X.K..:
2, 3 and 4 stages
6 to 400
6.8 to 475
Helical-bevel gear unit X.T..:
3 and 4-stage
12 to 400
6.8 to 175
